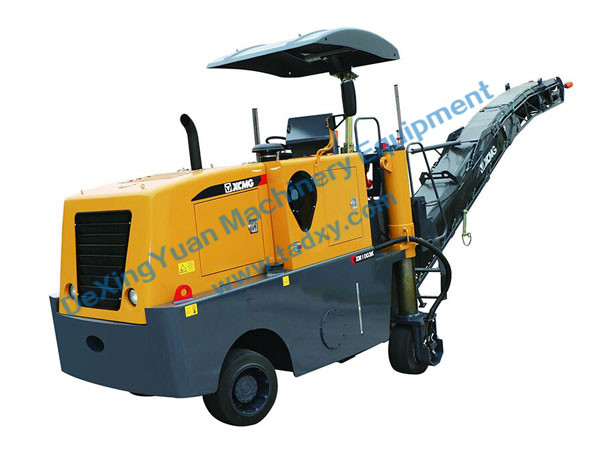

XM1005 Cold Milling Machine
XM1005 milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large –scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, reticulation and vehicle tracks as well as road trench, tunnel excavation. Cement road surface roughening and dislocation smoothness. The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is ideal equipment for pavement maintenance and renovation.
1.Main Parameter
Item |
Parameter |
XM1005 |
1 |
Max. milled width |
1000mm |
2 |
Max. milled depth |
180mm |
3 |
cutter space |
18mm |
4 |
Milled drum tools |
82 |
5 |
rotor diameter |
700mm |
6 |
engine |
shangchai |
7 |
Engine Model |
SC9DK220G3 |
8 |
Rated power |
162kW |
9 |
Swept volume |
8.8L |
10 |
Fuel consumption at rated power |
36.7L |
11 |
Comprehensive Fuel consumption |
12.3L |
12 |
Emission standards |
China III |
13 |
The electric system |
24V |
14 |
Fuel tank |
350L |
15 |
Hydraulic oil tank |
130L |
16 |
Water tank |
800L |
17 |
Operating speed |
45m/min |
18 |
Travel speed |
8km/h |
19 |
Max. gradeability |
50% |
20 |
Min. ground clearance |
180mm |
21 |
Tyre |
Solid rubber tyres |
22 |
Front tyre size |
645×300mm |
23 |
Rear tyre size |
645×300mm |
24 |
The belt width |
400mm |
25 |
Theoretical feeding capacity |
84m3/h |
26 |
Operation weight |
15600kg |
27 |
Machine (length×width×eight） |
4690×1950×3500mm |
